Desktop QA Testing Guide¶

Comprehensive manual testing checklist for the Sapari desktop app. Run before every major release.

Tests are organized by workflow order and grouped to avoid redundant retesting. Each section builds on previous ones — complete them in order.

Prerequisites¶

Desktop browser (Chrome or Firefox, latest)
Window width > 1024px (desktop breakpoint)
Test video file (30s+, with speech and silence)
Test assets: one video, one audio, one image
Backend running locally or connected to staging

0. Onboarding (First-Time User)¶

Guided Tour¶

1. Authentication¶

Email verification¶

Click verification link in email → "Verified" page with success message
Click expired/already-used verification link → "Invalid or expired verification link" message (no false success)
Click verification link multiple times in quick succession → second attempt shows the rate-limited message, not "Verified"

Change Password (Account Settings)¶

Change password with correct current password → success message, auto-redirects to login after ~2s
Login with new password works
Wrong current password → error message
Missing current password (non-OAuth) → error message
New password too short (<8 chars) → validation error
OAuth user → can set password without providing current password
After password change → all other sessions terminated

Change Email (Account Settings)¶

Collapsible "Change Email" section in Account tab (collapsed by default)
Shows current email
Enter new email + current password → success message "Check your new email"
Wrong password → error
Same email as current → error
Visit /confirm-email-change?token=... from verification email → "Email Changed" page
Invalid/expired token → error page
Old email receives notification about the change request
Dark mode: all form elements styled correctly

Change Name (Account Settings)¶

Hover name in profile card → pencil icon appears
Click → inline edit input with check/X buttons
Type new name → Enter or check → name updates immediately
Escape or X → cancels without saving
Name persists after page refresh

Delete Account (Account Settings)¶

"Delete Account" link below Sign Out
Email/password user: click → inline confirmation with password field + "Type DELETE" field; both required, button disabled until filled
Email/password user: wrong password → "Incorrect password" error
Email/password user: correct password + "DELETE" typed → account deactivated, logged out
OAuth user (Google/GitHub, no local password): click → inline confirmation with only the "Type DELETE" field (no password input rendered)
OAuth user: typing "DELETE" enables CONFIRM; click → account deactivated, logged out (provider session is the identity proof)
Cancel → resets all fields, hides confirmation
Dark mode correct on confirmation box

2. Project Management¶

Create & List¶

Click NEW PROJECT → new project appears in grid
Empty state shows "No Projects Yet" message with NEW PROJECT button
Project count label updates ("X PROJECTS SAVED")
Projects sorted newest-first
Project cards show video frame thumbnail after first clip is processed
Projects without clips show first-letter placeholder

Edit & Delete¶

Click pencil icon → inline name editor appears
Type new name, press Enter → name saved
Click X → cancels rename, reverts to original
Click trash icon → confirmation dialog appears
Confirm delete → project removed from list
Cancel delete → project stays

Resume¶

Click project card → opens project in editor
Status badges show correctly: COMPLETE (green), PROCESSING (yellow)
Switching from one open project to another (sidebar PROJECTS → click another card) shows a brief "Loading project…" placeholder while the new project's clips are restored, then renders the editor — no flash of empty editor and no 403s in the network tab from clip-proxy URL fetches keyed on the previous project.

3. File Upload & Import¶

Upload¶

Drag and drop video file onto upload area → file accepted, progress bar shows
Click file picker → select file → same behavior
Upload completes → green checkmark, file listed
Upload fails → red X with error message

Multipart Upload (files ≥ 25 MiB)¶

Upload a 100 MB video → completes; takes noticeably less time than the same file on the prior single-PUT path (parallel parts)
Upload a 2 GB video → completes; CANCEL UPLOAD button visible next to progress bar
File at exactly 25 MiB → multipart path
File at 25 MiB - 1 byte → single-PUT path (no multipart endpoints in network tab)
Network throttle to "Slow 3G" mid-upload → upload survives URL expiry boundary (refill kicks in transparently)

Multipart Cancel + Resume¶

Click CANCEL UPLOAD mid-upload → progress bar disappears, placeholder row removed quietly (not "Upload failed"), POST /clips/multipart/abort fires in network tab
After cancel, drop the same file in again → upload resumes from the next missing part (network tab: GET /multipart/parts first, then PUTs only the parts not on R2)
Hard fail (close + reopen tab mid-upload, no graceful cancel) → drop same file in → resume still works (IndexedDB persists across reload)
Edit the file on disk between attempts (touches lastModified) → drop in again → upload starts from scratch (fingerprint mismatch correctly skips resume)
After successful complete → drop same file in → fresh upload (IndexedDB cleared on success)

Clip Reorder¶

Upload 2+ clips → drag handles visible on hover
Drag clip to new position → clips visually reorder
Refresh page → order persists (saved to localStorage + backend)

YouTube Import (Viral Plan Only)¶

Non-viral user → YouTube import button shows locked state with "VIRAL PLAN" label
Non-viral user → "+ YOUTUBE" link hidden in sequence editor
Viral user → paste YouTube URL, press Enter → import starts
Progress indicator shows during import
Successful import → clip appears in timeline
Invalid URL → error message

3b. Failed-Clip Recovery¶

When any clip in the open project has status === 'failed' OR file_status === 'failed', the dashboard replaces the editor with a dedicated full-page failure screen listing every failed clip with Retry and Remove buttons. The dual-state check (isClipFailed in frontend/features/clips/types.ts) ensures both the per-project lifecycle and the underlying ClipFile artifact state are covered. Retry calls POST /api/v1/projects/{project_uuid}/clips/{clip_uuid}/retry, which dispatches to one of three workers depending on the failure stage:

YouTube import failed at download — clip has youtube_video_id set but no storage_key. Re-queues download_youtube_video; clip status resets to IMPORTING.
Upload-flow processing failed — file uploaded but artifact processing failed (no audio_key yet). Re-queues process_clip_artifacts; status resets to UPLOADED.
Proxy generation failed — artifacts done but proxy missing (audio_key set, proxy_key NULL, web_compatible=false in metadata). Re-queues generate_clip_proxy; status resets to UPLOADED.

Provoking modes 2 and 3 deterministically requires dev-tools access; flag those rows as requires staging or dev env if you can't reproduce them on your test environment.

Failure Screen Appearance¶

Project with at least one clip in any of the three failure modes → dashboard renders the full-page failure screen, NOT the editor and NOT the "Loading project…" placeholder
Heading reads "Clip processing failed"
Subtext reads "We couldn't process this clip." (one failed clip) OR "We couldn't process N clips." (multiple), followed by "Retry to try again — already-processed parts are reused so it's usually fast."
Each failed clip rendered as a row: clip filename on the left, Retry + Remove buttons on the right
Failed clips screen takes priority over the "Loading project…" syncing spinner (terminal failure state is surfaced even when other clips are still resuming)
Screen is gated on filesMatchProject — switching to a different project never shows another project's failed clips during the resume window
Dark mode renders correctly: white-on-dark heading, gray-on-dark subtext, white-bordered clip rows, orange Retry button, transparent Remove button with white border

Retry Per Failure Mode¶

YouTube download failure (provoke: import a known-broken YouTube URL — private video, deleted video, or an unsupported URL pattern that yt-dlp 4xxs on): Retry → POST /clips/{uuid}/retry returns 200 → SSE clip_processing arrives → failure screen disappears and dashboard reflows to the normal editor or "Loading project…"
Upload-flow processing failure (requires staging or dev env — kill the analysis worker mid-process_clip_artifacts or hand-edit the clip row to file_status='failed' with audio_key=NULL): Retry → status resets to UPLOADED → process_clip_artifacts re-runs → SSE clip_ready clears the failure
Proxy generation failure (requires staging or dev env — same approach, but with audio_key set, proxy_key=NULL, and web_compatible=false in metadata): Retry → generate_clip_proxy re-runs → proxy URL becomes available, failure clears
Network tab confirms exactly ONE POST /api/v1/projects/{project_uuid}/clips/{clip_uuid}/retry per Retry click (no duplicate dispatches)

Retry Button States¶

Retry button is disabled while the mutation is in flight (retryClipMutation.isPending) — second rapid click is a no-op
Retry button is also disabled if the clip somehow has no clip_uuid (defensive — should not occur in normal flows)
Disabled state shows reduced opacity + cursor-not-allowed
After mutation resolves, button re-enables (or the row disappears if the retry succeeded and the failure cleared)

Remove Button¶

Click Remove → only that clip is removed from the project
Other (non-failed) clips in the project remain intact in the backend (verify via GET /projects/{uuid}/clips or by retrying through the editor view if some failed clips remained)
Removing the last failed clip when all other clips are healthy → screen reflows to the normal editor view (or "Loading project…" if proxies are still loading)
Removing a failed clip when other clips are also failed → row disappears, remaining failed clips stay listed, screen heading updates count ("We couldn't process 2 clips." → "We couldn't process this clip.")

Back to Projects¶

"← Back to projects" link at the bottom of the screen → navigates to /projects
Returning to the project from the projects grid → if failures still exist, the failure screen renders again (state is server-derived, not session-scoped)

Recovery to Normal View¶

All failed clips removed → dashboard returns to "Loading project…" or the editor, depending on resume state
All failed clips successfully retried (each Retry resolves to a healthy clip) → same return path; no manual refresh needed
Mix of Retry + Remove until zero failed clips remain → dashboard transitions out of failure mode without a page reload

4. Analysis Settings¶

Silence & False Starts¶

Pacing slider: drag from 0 (OFF) to 100 (AGGRESSIVE) → label updates
False start slider: same behavior, purple accent
Setting to 0 disables that detection type

Audio & Captions¶

Clean Sweep toggle: on/off visually distinct
Caption language dropdown: select each option → selection persists
DISABLED → no captions generated

Presets (Configure Step — Analysis Settings)¶

Saves pacing, false-starts, language, censorship, and director notes — the settings visible on the configure page before analysis runs. Backed by /users/me/presets. - [ ] No presets by default -- only "Custom" shown initially - [ ] Save current settings as preset → enter name, save → appears in preset list - [ ] Click saved preset → sliders and settings auto-adjust - [ ] Delete preset → removed from list

Cost Estimate & Analysis Mode¶

Nothing toggled → shows "MANUAL - FREE" with tooltip (?)
Set only language → shows "CAPTIONS - ~X AI MIN" (0.5x rate)
Enable pacing or false starts → shows "AI EDIT - ~X AI MIN" (1.0x rate)
Switching settings updates cost estimate in real time
Tooltip explains mode derivation on hover
Insufficient credits → text turns red

Run Analysis¶

Click ANALYZE button → processing begins
Progress log shows real-time steps
Analysis completes → edits appear on timeline
Run picker hidden (only 1 run)

Re-analyze & Run Switching¶

5. Video Player (Collapsed Timeline)¶

Playback¶

Click Play → video plays, button changes to Pause
Click Pause → video pauses, button changes to Play
Current time display updates during playback
Playhead moves along timeline during playback

Seeking¶

Click on timeline waveform → playhead jumps to click position
Arrow Left → seek back 1s
Arrow Right → seek forward 1s
Shift + Arrow Left → seek back 5s
Shift + Arrow Right → seek forward 5s
Press 0 → reset zoom

Timeline scrub preview (sprite tile)¶

Keyboard Shortcuts¶

Space → toggle play/pause (only when not in text input)
Cmd/Ctrl + Z → undo last edit action
Cmd/Ctrl + Shift + Z → redo
Cmd/Ctrl + Y → redo (alternative)
Delete/Backspace → toggle selected edit active/inactive
+ or = → zoom in
- → zoom out

Volume¶

Main audio volume slider: drag → volume changes
Range 0-100%
Volume percentage displays above slider

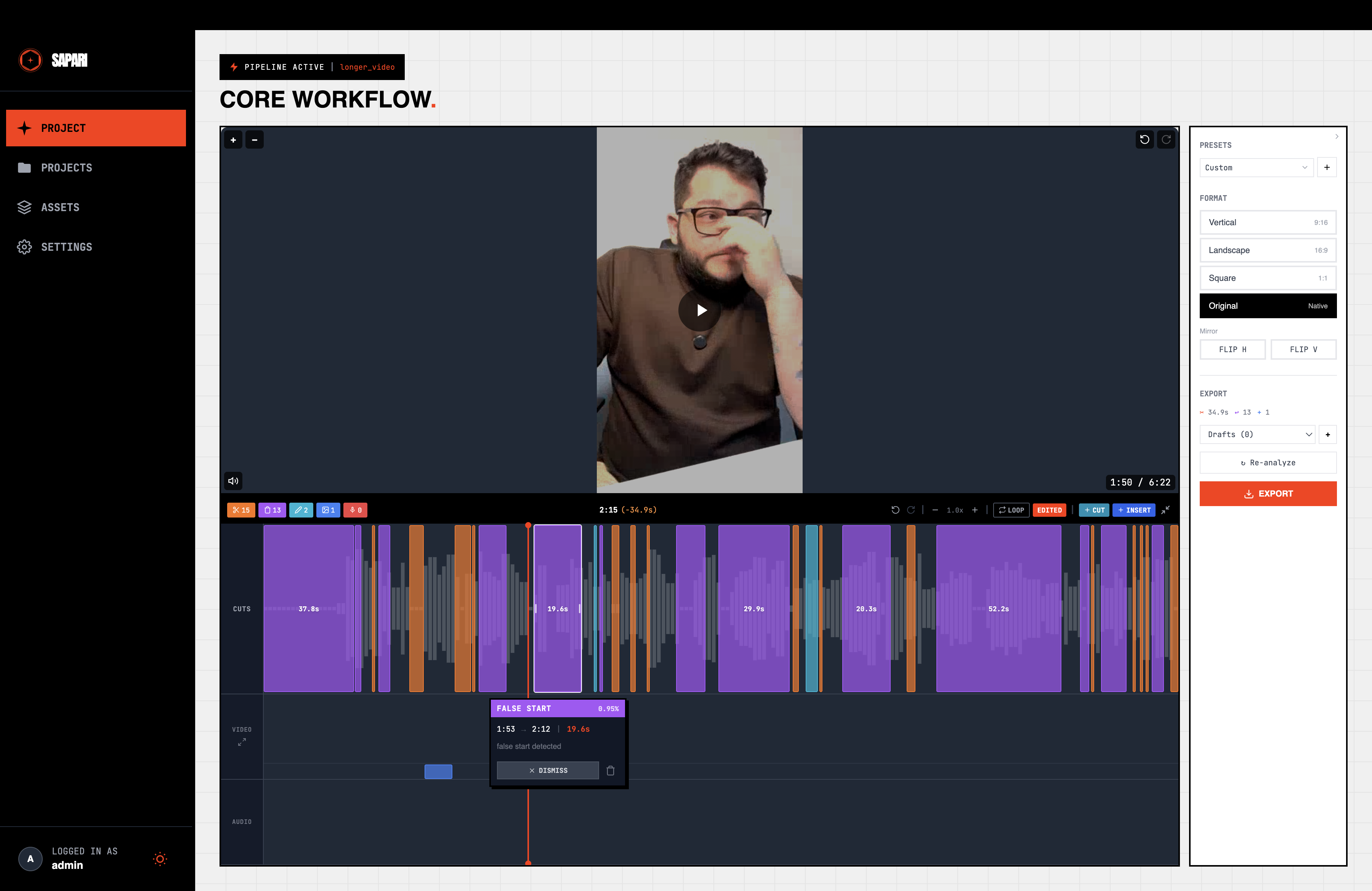

Edit Segments on Collapsed Timeline¶

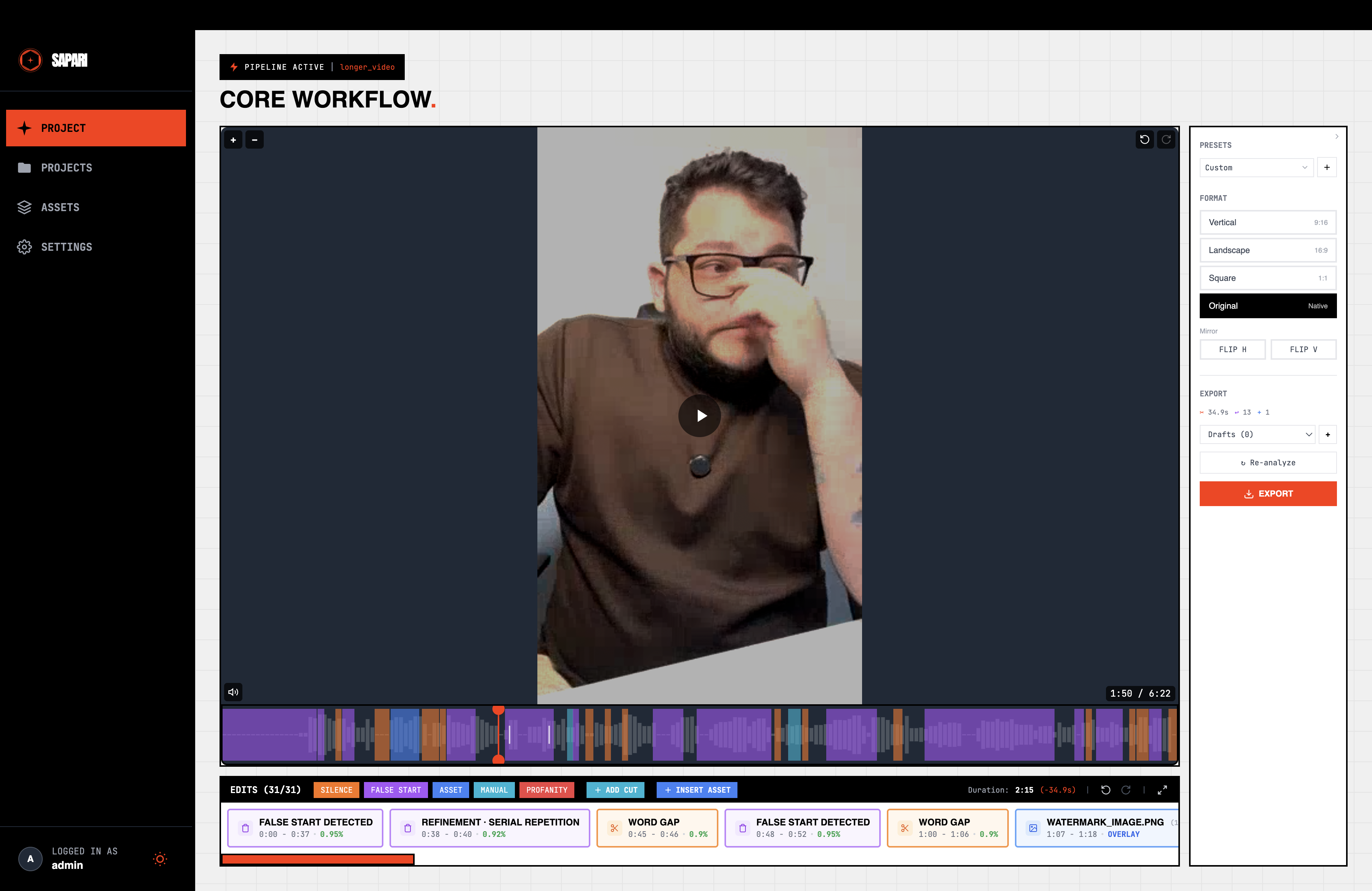

Edit segment colors on collapsed timeline

Silence edits show in orange
False start edits show in purple
Manual edits show in cyan
Asset edits show in blue
Keep edits show as dashed yellow border (transparent fill)
Click edit → selects it (highlight visible)
Click elsewhere → deselects

Overlap Cycling (Collapsed)¶

When edits overlap: badge shows "½" (or similar count)
Click badge → cycles to next overlapping edit
Non-visible edit shows at reduced opacity
In non-overlapping region, can still click the edit underneath

Cut/Keep Mode Toggle¶

5b. Keyboard Shortcuts & Playback Speed¶

JKL Shuttle Control¶

L key: plays forward. Press again for 2x, 4x, 8x
J key: rewinds. Press again for 2x, 4x, 8x
K key: stops, resets speed to 1x
K + L (hold K, tap L): step one frame forward
K + J (hold K, tap J): step one frame backward
Shortcuts don't fire in inputs (Director's Notes, project name)

Speed Control UI¶

Bottom-left of video: speed button beside volume button
Click speed button to open vertical slider (0.25x to 4x)
Click elsewhere to close slider
Click rate label to reset to 1x
Top-right badge shows current speed when not 1x
Speed persists across clip boundaries (multi-clip)

Shortcut Help Overlay¶

Press ? to open, Escape or backdrop to close
Lists all shortcuts grouped by Playback, Navigation, Editing, View
Dark mode correct

5c. Playback URL Refresh (Worker-Fronted Clips)¶

Clip playback URLs route through a Cloudflare Worker at /media/v1/<jwt> with a short TTL (300 seconds). useClipProxyUrls refreshes each URL ~30 seconds before expiry so playback never hits a 401. useProxyUrlSwap preserves <video> playback state across the src swap. When refresh hard-fails, ClipPlaybackErrorBanner surfaces above the video with Retry and Dismiss affordances.

These tests verify the retry-as-contract layer end-to-end. Some require shortening the server-side TTL to make the refresh observable within a test session.

Preemptive refresh (happy path)¶

Setup — one-time, shortens TTL so refresh fires within ~30s instead of every 5 min: 1. SSH to staging: ssh deploy@100.110.63.6 2. Edit /home/deploy/sapari/.env: change MEDIA_TOKEN_TTL_SECONDS from 300 to 60. Do NOT drop below REFRESH_BUFFER_SECONDS + ~5s. With TTL=30 and buffer=30, refresh fires at mint-landing and the new token would immediately be in the refresh window too — tight loop. TTL=60 gives a ~30s playback-then-refresh cycle. 3. Restart backend: cd /home/deploy/sapari && docker compose restart backend. Wait ~20s for health check.

Test (desktop): - [ ] Load a project with a clip. Open browser devtools → Network tab. Play the clip. - [ ] Expect at ~30s after initial playback: a second /api/v1/projects/.../clips/.../proxy request fires. - [ ] Expect immediately after: a second /media/v1/<different-jwt> fetch fires with a new JWT (compare the last few chars of the token in the URL — they should differ). - [ ] Expect: playback continues without a visible stall. A brief buffering overlay (<200ms) is acceptable while the new source loads — shows the sprite-tile poster if the clip has a sprite, otherwise a "Buffering..." text overlay. A long stall is a regression. - [ ] Position is preserved within ±100ms across the swap. - [ ] Expect wrangler tail --env staging to show the second /media/v1/* returning 200 (or 206 for range requests).

Teardown: - [ ] Revert MEDIA_TOKEN_TTL_SECONDS=300 and docker compose restart backend.

Setup: same TTL=60 from above, or leave at 300 if you're patient.

Test: - [ ] Play a clip. Once it's playing, stop the backend: docker compose stop backend. - [ ] Wait for the refresh window (~30s with TTL=60, ~4.5 min with TTL=300). - [ ] Expect: after useClipProxyUrls' 2s retry also fails, ClipPlaybackErrorBanner appears at the top of the video area (above the <video> element). - [ ] Expect banner copy: "Playback interrupted — Server problem refreshing playback. Try again, or reload the page." - [ ] Click Retry in the banner. Nothing happens yet (backend still down). - [ ] Click Dismiss (X icon). Banner disappears. - [ ] Restart backend: docker compose start backend. Wait ~20s. - [ ] Expect the next refetchInterval tick (or user can click Retry again): playback resumes, refreshError clears on the clip, banner stays dismissed.

Session-expired smoke (401 on mint)¶

Test: - [ ] Load a project with a clip playing normally. - [ ] In devtools → Application → Cookies, delete session_id. - [ ] Wait for next refresh (~30s if TTL=60). - [ ] Expect /api/v1/projects/.../clips/.../proxy returns 401. - [ ] Expect frontend ApiClient.onUnauthorized fires → AuthContext cleared → redirected to login. - [ ] No banner, no retry storm, no surprise UI.

Error copy differentiation¶

With the backend returning a 500 (stop backend scenario), banner shows "Server problem..." copy. With a network-simulated failure (devtools → Network → Offline), banner shows "Connection issue..." copy. - [ ] Offline mode: banner copy matches "Connection issue refreshing playback..." - [ ] Backend stopped: banner copy matches "Server problem refreshing playback..."

Retry button — iterate across errored clips¶

Only meaningful when you can force multiple clips to error simultaneously (e.g. all using a broken proxy). In practice, single-clip retry covers this — the Retry button calls refetchClip(uuid) once per errored clip. - [ ] Multi-clip project, backend stopped, wait for refresh failures on multiple clips. Banner appears once regardless of how many clips errored. - [ ] Click Retry. Devtools → Network: one /proxy request per errored clip fires.

Dismiss + re-error cycle¶

Trigger a refresh failure, banner appears.
Dismiss. Banner hides.
Fix the failure (restart backend, restore connectivity), wait for successful refresh, refreshError clears.
Trigger a new failure (stop backend again, wait for refresh).
Expect: banner re-appears. Dismiss is session-scoped but auto-resets when errors clear.

6. Expanded Timeline Editor¶

Layout¶

Expanded timeline with two tracks and edit popover

Two tracks visible: Cuts track (top) and Inserts track (bottom)
Waveform renders on both tracks
Playhead synced across tracks and video

Drag & Resize¶

Undo/Redo¶

Drag edit → Cmd+Z → returns to previous position
Cmd+Shift+Z → re-applies the drag
Delete edit → Cmd+Z → edit fully restored (all fields intact)
Drag edit twice rapidly → Cmd+Z → goes back exactly one drag (not two)

Zoom & Viewport¶

Scroll wheel up → zoom in (point under cursor stays stationary)
Scroll wheel down → zoom out (same focal behavior)
+ button → zoom in (center-focused)
- button → zoom out
Reset button → return to 1x zoom
Zoom range: 1x to 50x
Mini-map appears when zoomed >1x

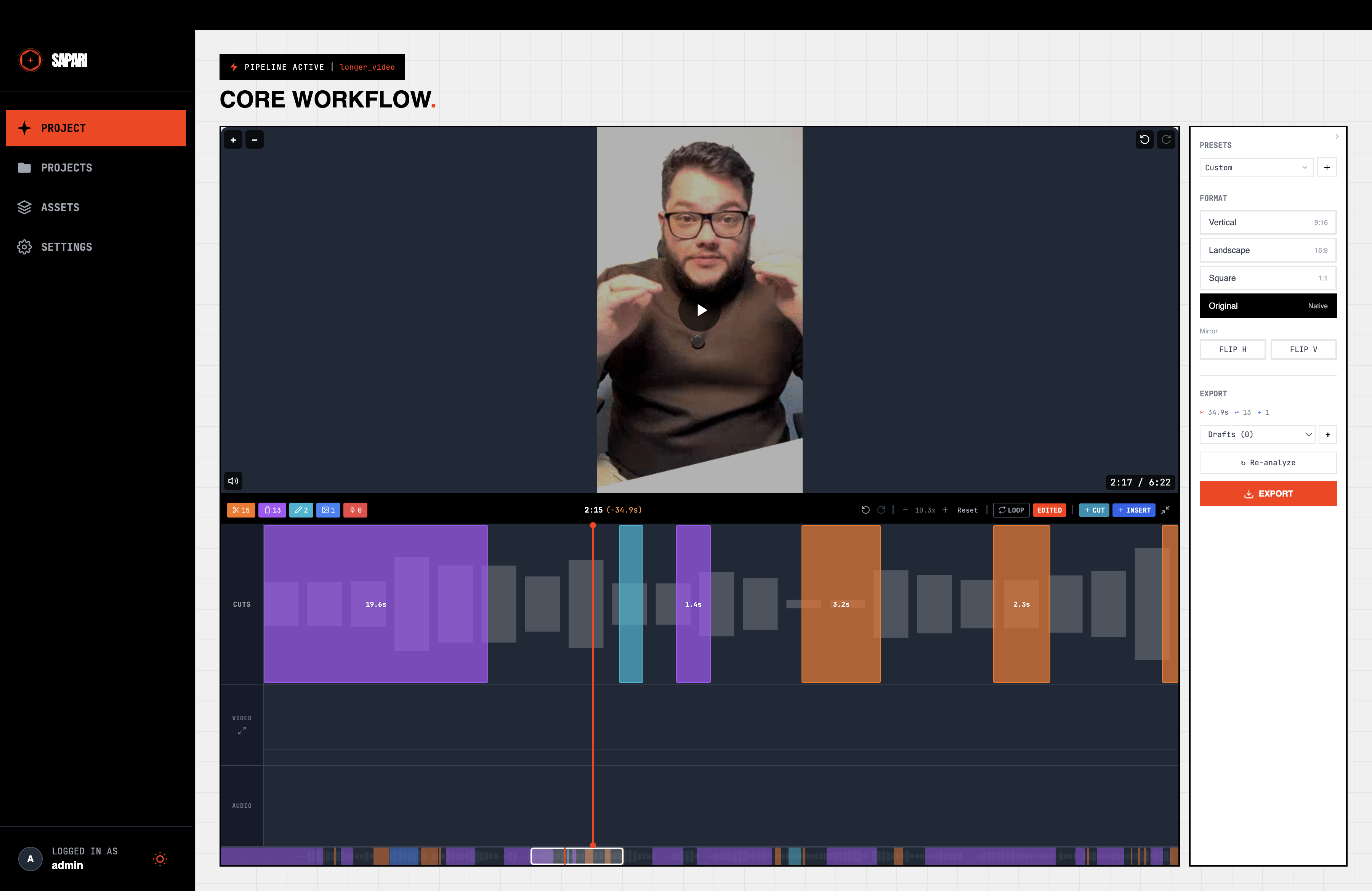

Mini-map with viewport rectangle at high zoom

Drag mini-map viewport rectangle → timeline pans
Click on mini-map → viewport jumps to that position
Playhead stays visible (auto-scroll follows during playback)

Loop & A/B¶

LOOP toggle → playback loops within current viewport
SHOW ORIGINAL toggle → plays original unedited video
Toggle off → returns to edited version

Overlap Cycling (Expanded)¶

Overlapping edits show badge with count
Click badge → cycles visible edit, auto-selects newly visible one
Hidden edit has pointer-events disabled (can't accidentally interact)

7. Insert Focus Mode¶

Enter/Exit¶

Click focus mode button → switches to multi-lane view
Back button → returns to normal expanded view

Layout¶

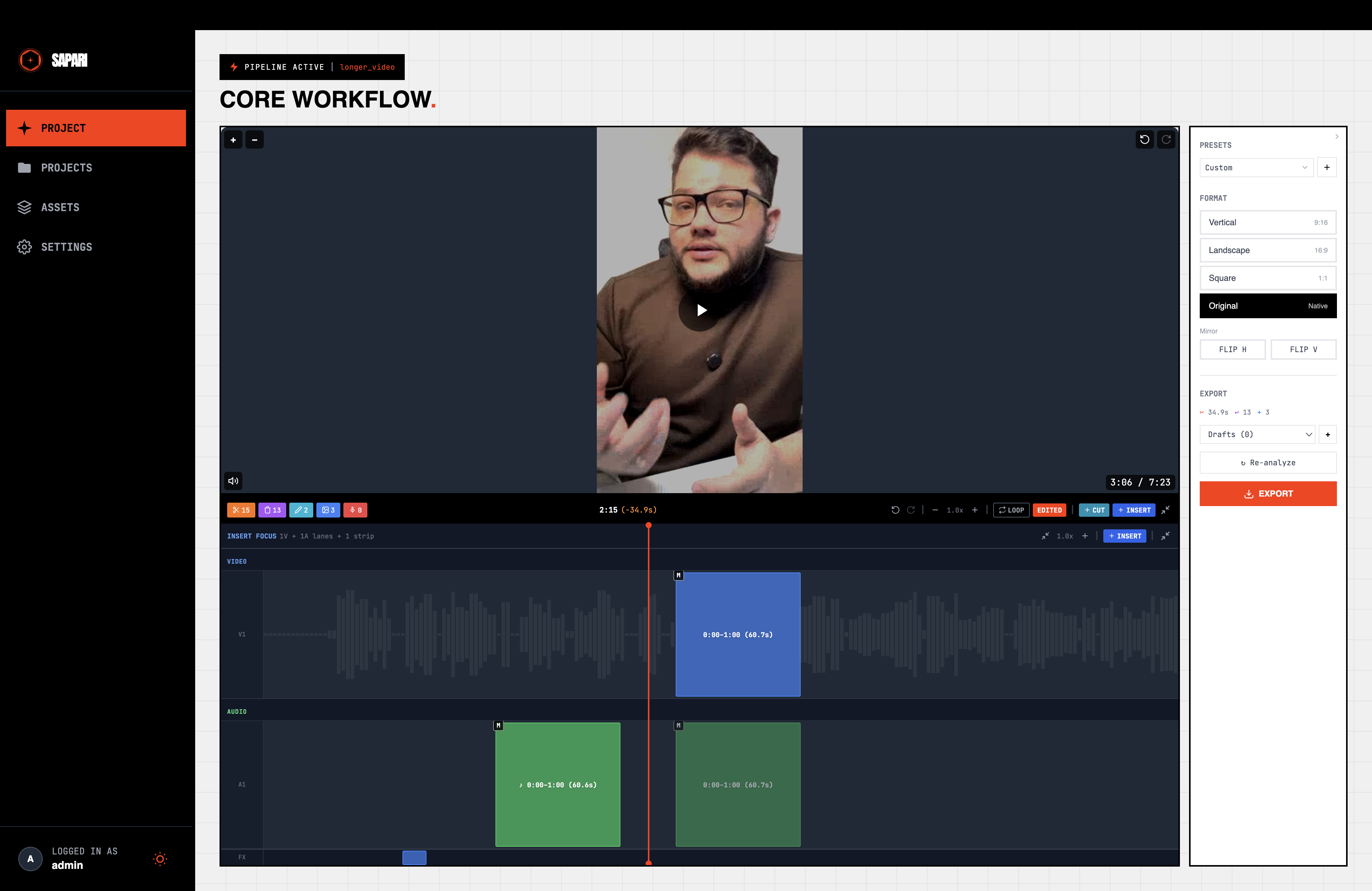

Insert focus mode with VIDEO and AUDIO lane sections

VIDEO section: timed inserts in lanes, strips below
AUDIO section: timed audio assets in lanes, strips below
Assets packed into minimum lanes (no overlap within lane)
Section headers show section type

Interactions¶

Same drag/resize/select behavior as normal expanded mode
Popover works identically
Zoom and mini-map work identically
Overlap cycling badges visible and functional

7b. In-App Notifications¶

Bell Icon¶

Bell icon visible in content header (next to "?" tour button)
Red dot appears when unread count > 0
Red dot disappears when all marked read

Click bell opens compact dropdown card (not full-screen)
Click outside or X closes panel
Panel shows all unread + last 5 read notifications
"Read all" button visible when unread exist, marks all as read
Brutalist shadow styling, dark header

Notification Items¶

Type-colored dot: green (success), yellow (warning), red (error), orange (info)
Read notifications have gray dot
Time-ago display (now, 5m, 2h, 1d)
Check button marks individual as read (optimistic update)
X button archives/dismisses (optimistic, item removed immediately)

Real-Time (SSE)¶

Start analysis, wait for completion - notification appears without refresh
Start export, wait for completion - notification appears without refresh
Browser tab title shows Sapari (N) (brand-first, count as suffix) when notifications are unread, Sapari — <project name> when a project is loaded, or just Sapari otherwise. Brand-first ordering ensures mobile-tab truncation preserves "Sapari" instead of leading with the project filename.
Tab title resets to "Sapari" on logout / project close

Dark Mode¶

Panel colors correct in dark mode
Orange border, dark header, correct text contrast

8. Asset Library¶

Asset Groups¶

Create group: click +, enter name → group appears
Rename group: click group name → inline edit → Enter saves, Escape cancels ("All Assets" is not renameable)
Delete group: click trash → confirmation → removed
Expand/collapse group: click card → toggles
Pin group: click pin → stays at top

Upload Assets¶

Drag file onto group → upload starts with progress bar
Upload completes → green checkmark, asset card appears
Upload fails → red X, error shown
Multiple files: all upload simultaneously

Asset Cards & Thumbnails¶

Hover shows action buttons (rename, edit, delete)
Video assets show frame thumbnail (center-cropped 240x240)
Image assets show scaled thumbnail
Audio assets show Mic icon (no thumbnail)
Broken/expired thumbnail URL falls back gracefully (no broken image icon)
Type label visible (VIDEO, AUDIO, IMAGE)

Asset Actions¶

Rename: pencil icon → inline edit → Enter saves
Delete: trash icon → confirmation → removed
Edit (scissors icon): opens Asset Editor

Search box filters by name (real-time, no submit needed)
Type filter: All / Image / Video / Audio
Sort: Name A-Z, Name Z-A, Newest, Oldest

Asset Editor¶

Opens with video/audio preview
Trim sliders adjust playback region
Manual cuts: click to add cut points
Extract audio checkbox: saves audio as new asset
Save → processes and creates edited copy
Cancel → closes without changes

9. Asset Behavior Configuration¶

Fixed Positions¶

Set asset as Intro → always plays at video start
Set as Outro → always plays at video end
Set as Watermark → overlaid continuously (locked, can't drag)
Set as Background Audio → mixed with main audio, no visual

Insertion Modes¶

AI-Directed → AI places automatically during analysis
Manual → only placed when user explicitly inserts
Unconfigured → no auto-placement

10. Asset Placement & Visual Modes¶

Manual Insertion¶

Click INSERT ASSET in timeline controls → asset picker opens
Select asset → edit placed at playhead on Inserts Track
Picking a non-insert asset (overlay / replace / audio-only) while the playhead is inside an existing INSERT region creates the asset anchored to that insert (start_ms = splice + offset_into_insert, insert_overlap_modes = {<insertEditId>: 'merge'}) so it plays during the insert. Common case: audio asset placed underneath an inserted video clip to soundtrack it. See issue #234.
Picking an INSERT-mode asset while the playhead is inside an existing INSERT region is a silent no-op (no INSERT-inside-INSERT nesting). Same silent bail for intro/outro fixed regions.
Switching visual mode resets audio defaults (replace: original/0%, overlay: mix/50%/duck, insert: mix/100%)

Visual Mode: Replace¶

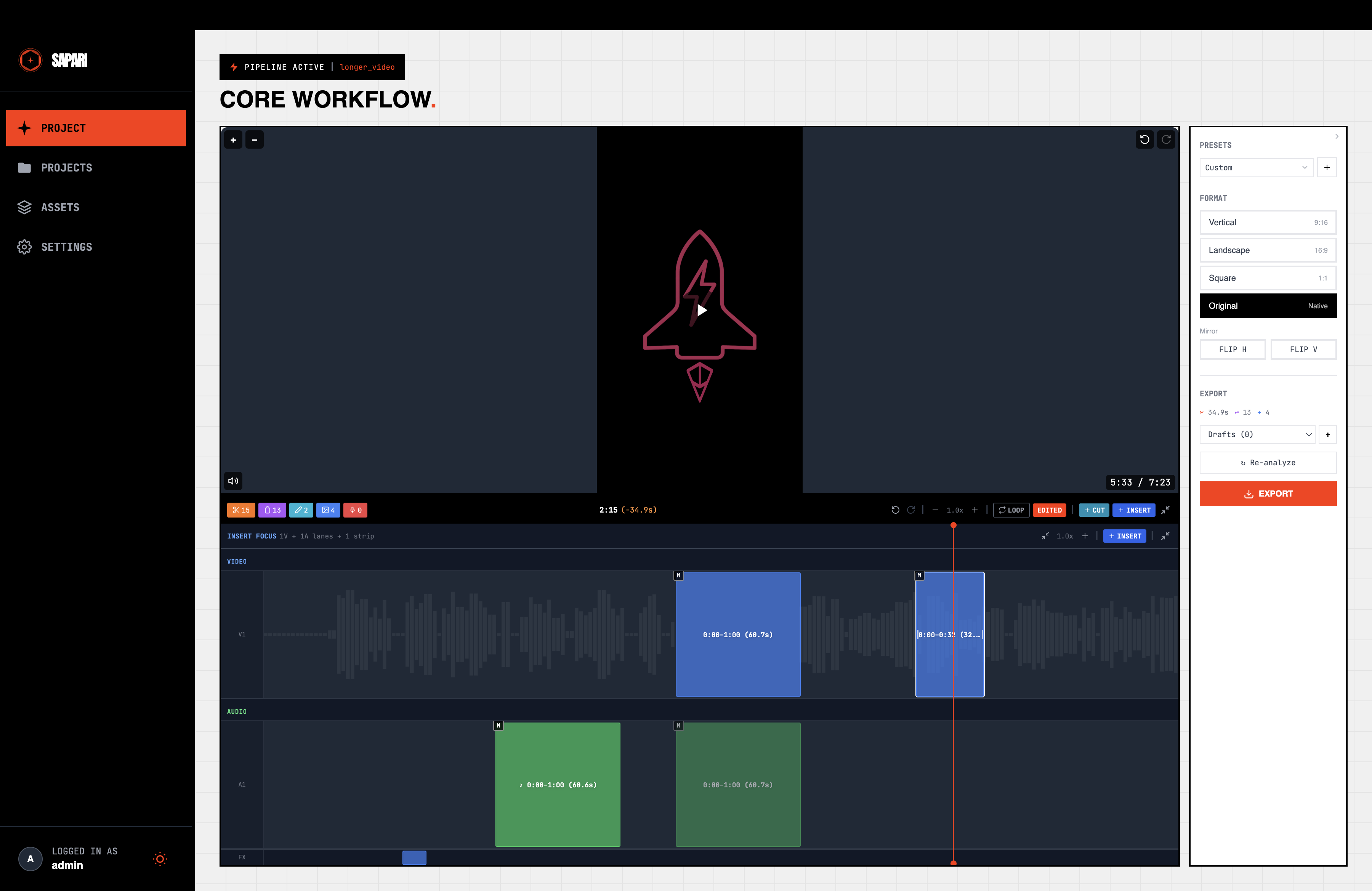

Replace mode — asset fullscreen, main video hidden

Asset plays fullscreen, replacing main video
Main video hidden during asset duration
Popover shows REPLACE mode indicator

Visual Mode: Overlay¶

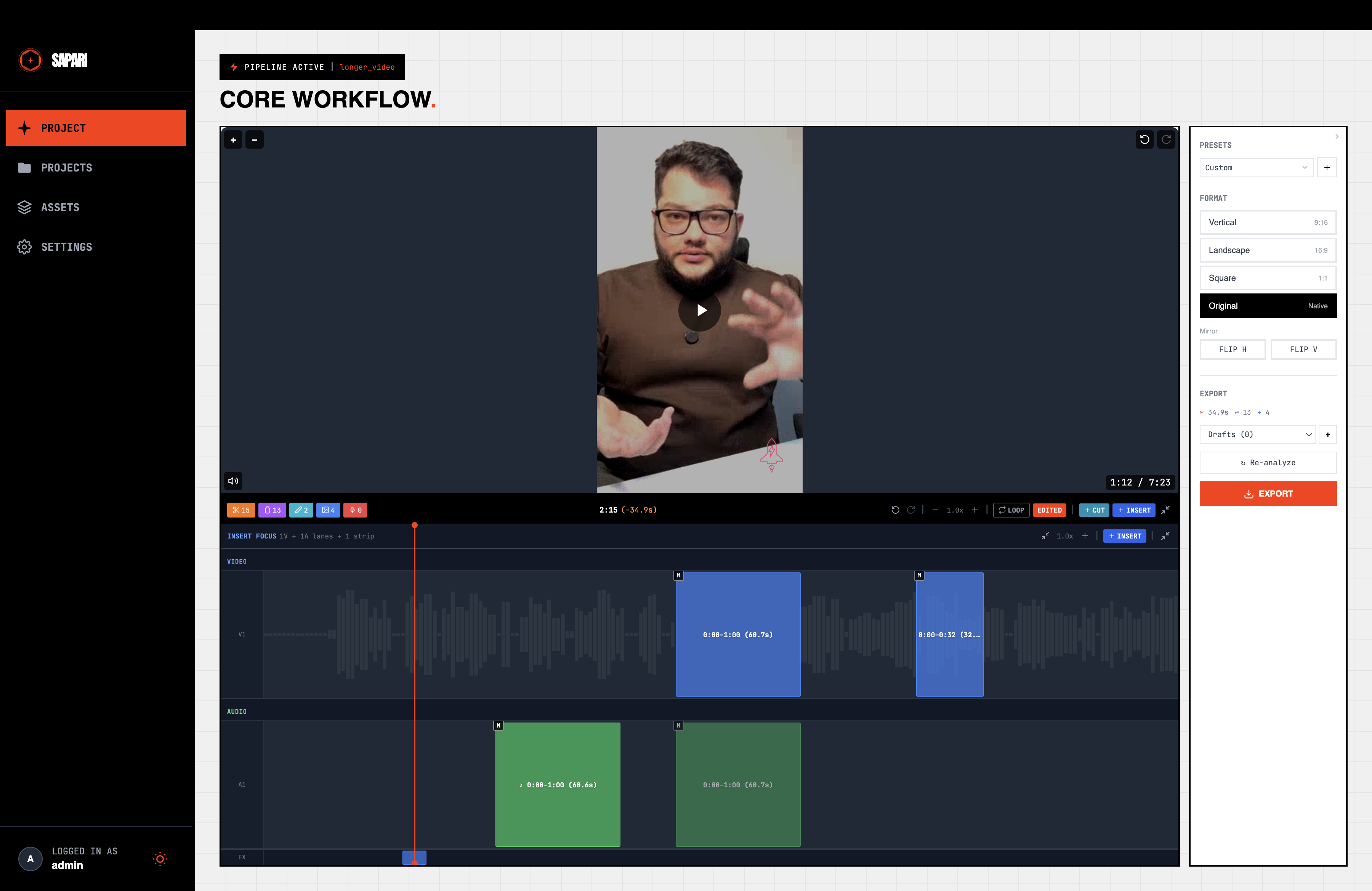

Overlay mode — PIP on top of main video

Asset renders on top of main video (PIP)
Main video visible underneath
Position grid in popover: 9 positions + custom
Size slider: 10-200%
Opacity slider: 0-100%
Flip H / Flip V / Rotate buttons work

Visual Mode: Insert¶

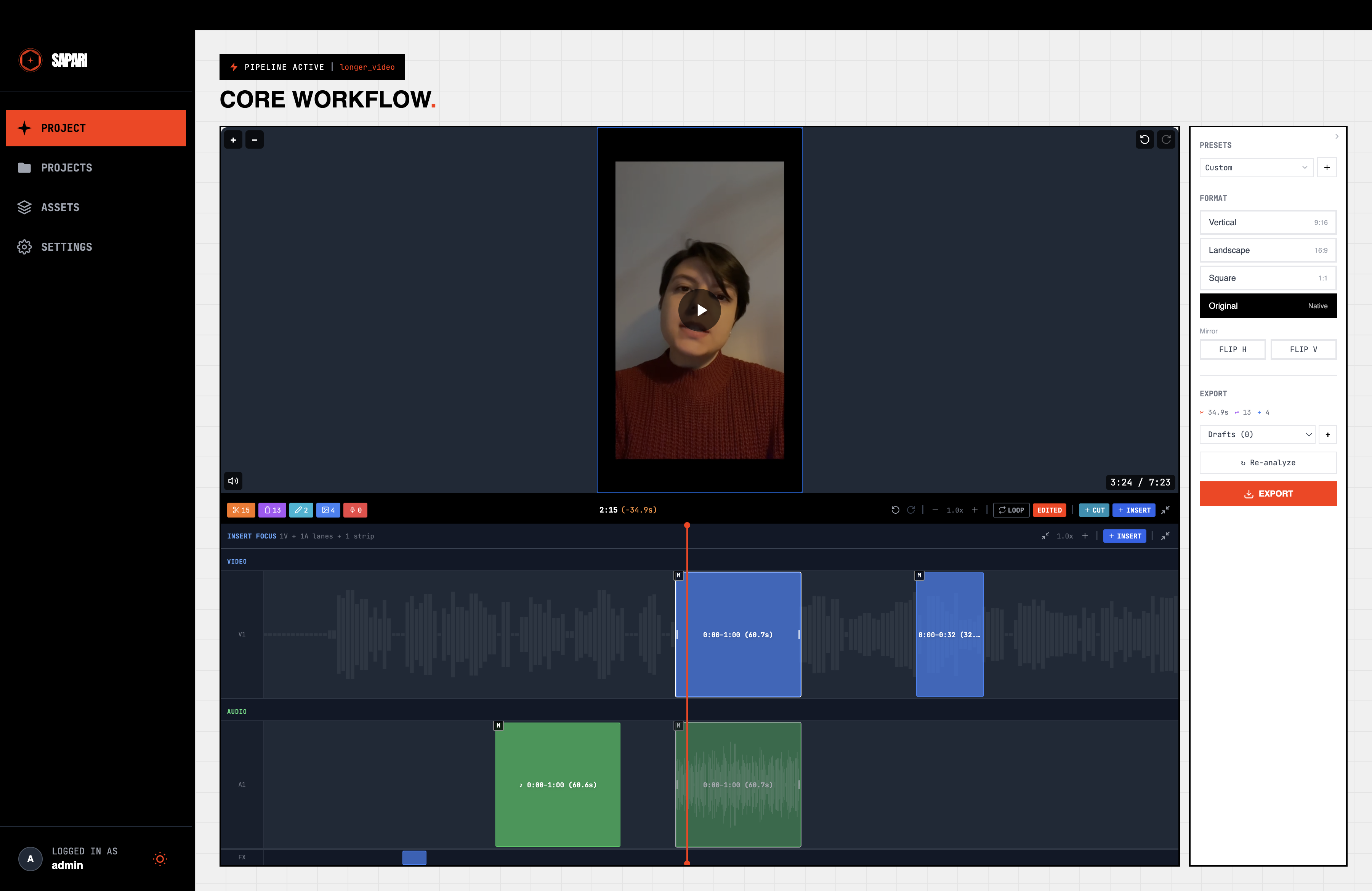

Insert mode — asset spliced into timeline

Asset spliced into timeline, expanding total duration
Main video splits around insert
INSERT region visible on timeline
Image assets display as static image during insert duration
Video assets play during insert duration
Playback continues seamlessly through insert regions (no manual re-play needed)
INSERT-mode popover shows TWO independent switches (NOT the legacy MIX/ASSET ONLY/MUTE enum): one for the insert's own audio (insert_audio_enabled), one for overlapping anchored audio (insert_allow_overlapping_audio). Volume slider follows the first switch.
Toggling either switch persists across reload. Backend rejects audio_mode on visual_mode=insert payloads — switching an existing REPLACE asset to INSERT must clear audio_mode (frontend forces it null) and surface the two booleans instead.
Dimmed timeline rendering: when an anchored audio asset is silenced by insert_allow_overlapping_audio=false, its bar dims (opacity 60) inside the insert range so the silence is visible.

Visual Mode: None (Audio Only)¶

No visual output
Audio plays per audio mode setting

Audio Modes (non-INSERT only — overlay, replace, audio-only)¶

Original Only → only main audio plays
Asset Only → only asset audio, main muted
Mix → both play, volume slider controls asset level (0-100%)
Ducking toggle → main audio reduces during asset playback
These four options DO NOT appear for INSERT-mode edits; INSERT uses the two booleans above. Verify the popover swaps controls when visual_mode changes.

11. WYSIWYG Overlay Editor¶

Drag¶

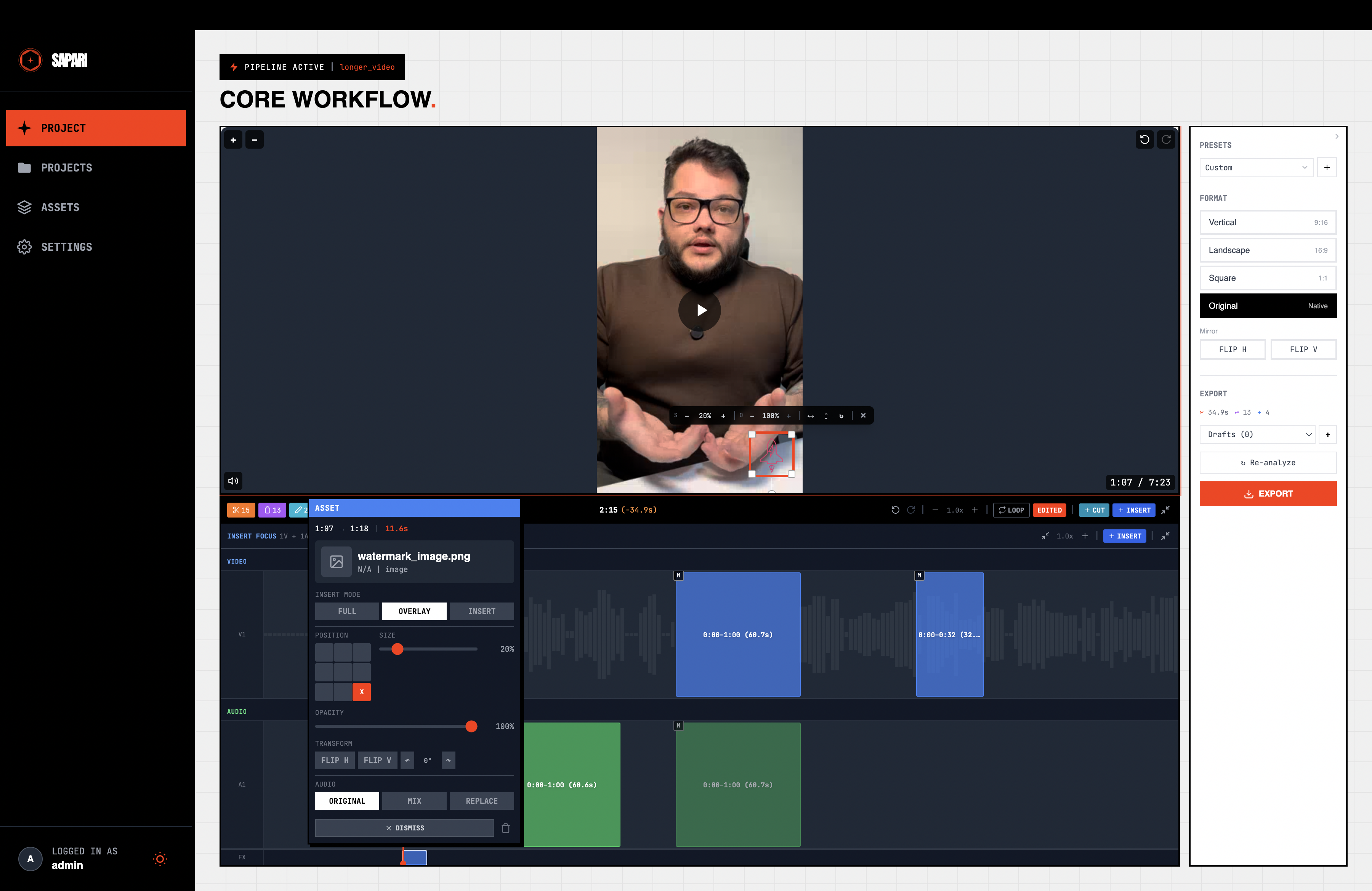

Selected overlay with resize handles and floating toolbar

Click overlay on video preview → selects it (border + handles appear)
Drag overlay → position updates in real-time
Snap to grid: overlay snaps when near grid lines (visual indicators appear)
Release → new X/Y position saved

Resize¶

Corner handles: drag to resize (maintains aspect ratio)
Edge handles: drag to resize one dimension
Minimum size enforced
Past-center clamp: drag a corner past the overlay's center → size shrinks to MIN and stays there (no oscillation back up). Math lives in shared computeResizeScale (shared/lib/resizeScale.ts).

Floating toolbar appears above selected overlay (when paused)
Size ± buttons (2% increments)
Opacity ± buttons (5% increments)
Flip H, Flip V, Rotate buttons
Toolbar repositions if near viewport edge
Playing video → toolbar hides
Deselect overlay → toolbar hides

Custom Position¶

Drag overlay to custom position → popover shows X% / Y% readout
RESET TO GRID button in popover → snaps back to grid position

12. Insert Overlap Modes (Merge / Split / Anchor)¶

The toggle cycles MERGE → SPLIT → ANCHOR → MERGE on each click.

Detection¶

Place non-insert asset spanning an INSERT → popover shows "Overlaps" section
Works for: audio-only, overlay, and replace assets

Merge (Default)¶

Merge mode — continuous segment with dashed border

Toggle shows MERGE (gray) → asset plays through insert uninterrupted
Merge indicator (dashed border) visible on timeline segment

Split¶

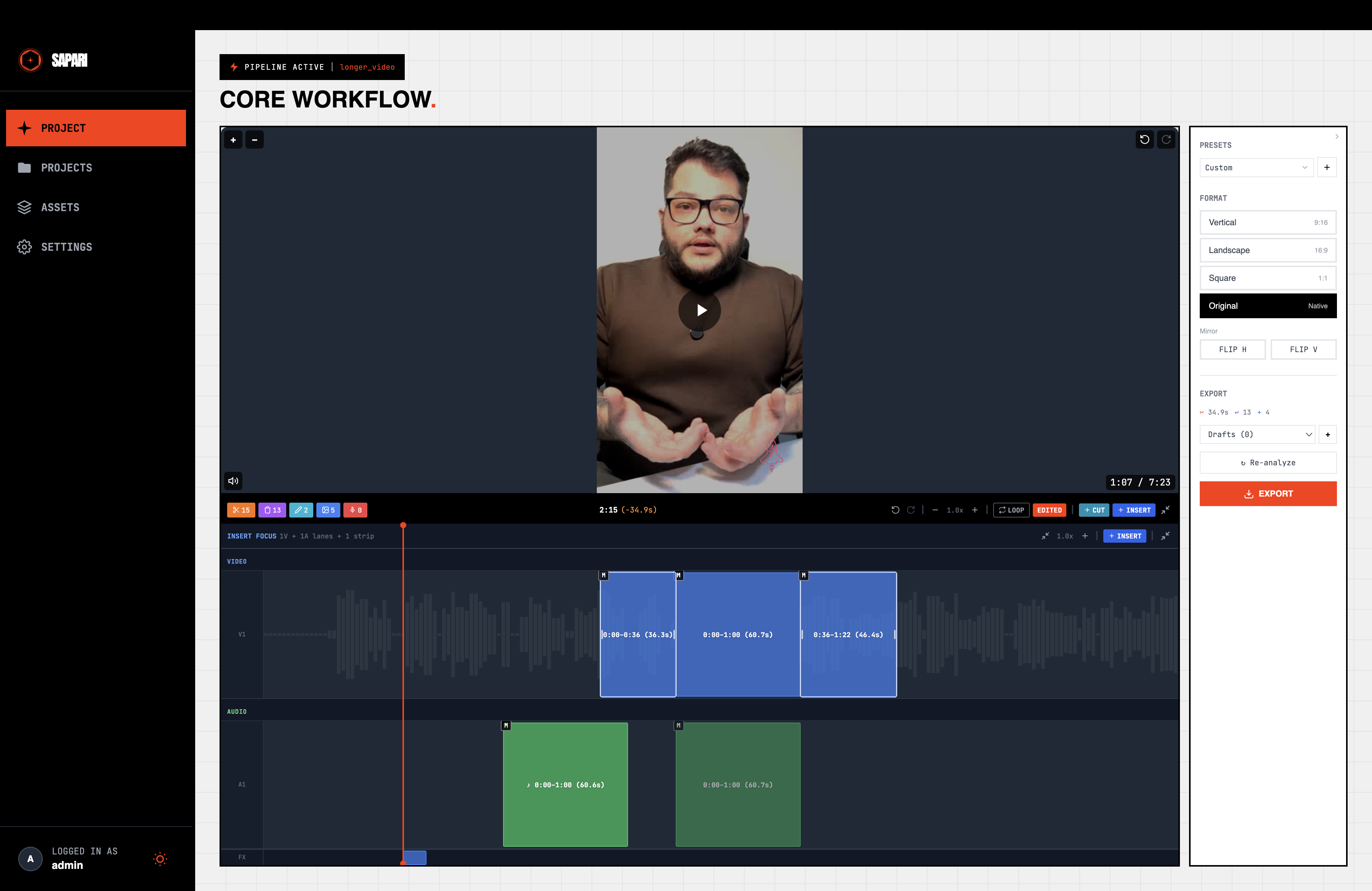

Split mode — segment split with gap at insert

Click toggle once → switches to SPLIT (yellow)
Asset visually splits into separate pieces on timeline (gap at insert)
Asset audio pauses during insert, resumes after
For overlay: overlay disappears during insert
For replace: replace pauses, insert video appears, replace resumes

Anchor (issue #234)¶

Click toggle from SPLIT → switches to ANCHOR (blue)
Asset bar renders in two visual pieces: full-opacity slice inside the INSERT region, dimmed slice (opacity-30) outside
Export only plays the asset during the insert region — overflow portion is clipped (renderer caps end at insert.output_end_ms)
When asset's start is dragged inside an INSERT, picking ANCHOR snaps the audible window to the insert duration even if the bar visually extends past

Multiple Overlaps¶

Asset overlapping two INSERTs → each has independent MERGE/SPLIT/ANCHOR toggle
Can mix modes (merge with one insert, anchor on another, split on a third)

13. Captions¶

Display¶

Captions render as text overlay on video during playback
Caption timing synced with playhead
Position: configurable (top/bottom)
Captions render ON TOP of asset overlays in preview (place an asset overlay at bottom-center where captions sit → captions stay readable above the overlay). Export matches: download MP4 with the same setup → burned-in captions appear on top of the overlay.

CC Toggle (Video Preview)¶

CC button visible bottom-left of video preview (next to speed button)
Click CC → captions hidden in preview, button dims to white
Click CC again → captions shown, button turns orange
Toggle is preview-only — does NOT affect the export panel's "captions enabled" setting (export burn-in stays on while preview overlay is hidden, and vice versa)
Captions on by default when project has caption lines

Editor¶

Click to expand caption editor panel
Caption list shows all lines with time ranges
Active caption highlighted during playback
Auto-scroll follows playhead

Editing¶

Click caption text → inline editor appears
Edit text, press Enter → saves
Press Escape → cancels edit
Click reset icon → restores original text
Click trash → deletes caption line

Styling (in Export Settings)¶

Font size slider adjusts caption size
Position toggle: Top / Bottom
Font family: Sans / Serif / Mono
Text color picker
Background toggle + color + opacity

Drag to Reposition (free-form caption position)¶

13c. Vertical Crop¶

CROP/BARS Toggle (SettingsSidebar FORMAT section)¶

Select non-native aspect ratio (e.g. 9:16) → CROP/BARS toggle appears
Click CROP → video auto-zooms to fill, enters adjusting mode
Click BARS → video letterboxed with background color
Same aspect ratio as source → no toggle shown

Zoom + Pan (adjusting mode)¶

Scroll wheel zooms in/out
Zoom snaps at fill level (no bars)
Zoom slider works (1x to 10x)
Drag to pan — smooth, axis-locked (mostly-horizontal drag locks vertical)
Pan snaps to center when close
Play button hidden during adjusting (drag works)
Speed badge doesn't scale with zoom

Accept Crop¶

Click DONE → crop locked, video plays normally
Click ADJUST CROP → re-enters adjusting mode
Export with crop → FFmpeg crop matches preview (no bars if filled)
Export without crop (BARS mode) → letterboxed as before

Overlays Stay Visible Under Crop (regression for #119)¶

Crop enabled + caption_position=top → captions visible at top of cropped frame (not pushed off-screen)
Crop enabled + caption_position=bottom → captions visible at bottom of cropped frame
Crop enabled + asset insert with overlay visual mode → overlay still visible at its configured position, not cropped out
Crop enabled + trial/free user watermark → watermark still visible at bottom-right corner of cropped frame
Changing zoom/pan doesn't visually scale or shift any overlay (only the video moves)
Preview matches the exported MP4 — captions, inserts, and watermark land in the same places

13d. Per-Asset Crop (issue #235)¶

Crop control on REPLACE / INSERT video and image asset edits — independent of the main-video crop in 13c. Audio-only assets and OVERLAY mode are out of scope.

Toggle Visibility (EditPopover)¶

Select a REPLACE or INSERT asset edit where the source aspect matches the project's target → AssetCropEditor is hidden (no reframe needed).
Select a REPLACE or INSERT asset edit where source aspect differs from target → AssetCropEditor appears with CROP/BARS toggle.
Audio-only asset edit → AssetCropEditor not rendered.
OVERLAY mode → AssetCropEditor not rendered (overlays use overlay_size_percent).

Toggle On Behavior¶

Click CROP → zoom snaps to computeFillZoom(sourceAspect, targetAspect), pan resets to (0, 0).
Without the snap-to-fill, toggle-on at zoom=1.0 would still letterbox — verify the auto-fill actually fills the frame.
Click BARS → reverts to letterbox; persisted zoom/pan retained for next toggle-on.

Zoom + Pan¶

Zoom slider range 1.0x – 10.0x (matches main-video crop bounds).
Drag inside preview to pan — axis snap (mostly-horizontal locks vertical, mostly-vertical locks horizontal).
Pan snaps to center (0, 0) when close.
Drag inside the asset preview doesn't bubble up and pan the main-video crop or scrub the timeline.

Preview Parity¶

CROP enabled → asset video uses object-cover + computeCropTransform(zoom, panX, panY); the asset fills the frame with no black bars.
Other asset edits in the same project keep their letterbox behaviour unchanged.
Main video crop (if enabled) and per-asset crop coexist — neither affects the other's transform.

Intro / Outro / INSERT With Crop (Layer Split)¶

Add an intro asset with source aspect differing from the project's target → toggle CROP on the intro edit → the intro preview fills the frame.
Same intro with main-video crop ALSO enabled at any zoom → the intro is NOT double-cropped. Visual zoom on the intro matches the per-asset zoom only (the project crop applies only to main clips).
Toggle CROP off on the intro → intro letterboxes; main clips still honor the project main-video crop.
Same scenarios for outro and for INSERT-mode asset edits — each gets its own independent crop, none inherit the main-video crop transform.
Toggle a per-asset crop via the AssetCropEditor → the change persists (PATCH succeeds with a non-empty body and the toggle survives reload). Regression guard for the camelCase→snake_case translation table.

Swap-Mode Reset¶

Select an asset edit with crop enabled, swap the underlying asset → AssetCropEditor returns to disabled state, all four crop fields reset.
If you re-enable crop on the new asset, zoom snaps to the new asset's source-aspect fill (not the old asset's).

Project Aspect Change Adapts Crop¶

Persist crop on an asset in a 16:9 project, then change project format to 9:16 → preview re-fills (no fresh letterbox), zoom/pan auto-adapt against the new target.
Export after aspect change → render matches preview.

Legacy Assets (Pre-Migration)¶

An asset uploaded before migration a4c9e2b6f085 (NULL AssetFile.width/height) → AssetCropEditor toggle is disabled with a re-upload tooltip.
Edit row still round-trips its asset_crop_* fields (saved-but-disabled state survives reload).
Render for legacy asset falls back to letterbox; no warning surfaced to user.

Export Parity¶

Export with per-asset crop → FFmpeg scale=<cover>,crop=<region>,scale=<exact target>,setsar=1 chain matches preview, no letterbox bars on the cropped asset.
Mixed export: one asset cropped, one asset letterboxed, captions present → both render correctly, captions still on top of asset.
Image asset with crop → still renders for full segment duration (no flicker).

Saves the sidebar's visible state: aspect ratio, letterbox background, caption style/font/size/position/color/length, caption background (enable/color/opacity), and video flip H/V. Distinct from the configure-step Analysis Presets — this one is backed by /users/me/preview-presets.

No presets by default -- only "Custom" shown initially
Save current sidebar state as preset → enter name, save → appears in dropdown
Click saved preset → aspect ratio, caption style, caption font, caption size, caption position, caption color, caption length, caption BG enable/color/opacity, video flip H/V all update
After picking a preset, change any setting → dropdown resets to "Custom"
Re-pick the same preset → values re-apply (drift detection allows re-selection after edits)
Delete preset → removed from dropdown; if it was selected, dropdown switches to "Custom"
Saving preset A, then changing settings and saving preset B, then clicking A restores A's format+caption state

14. Export¶

Create Export¶

Click export button → export panel opens
Fill name, select platform (YouTube/TikTok/Instagram/Custom)
Select resolution (720p/1080p) -- 2K/4K post-launch (Phase 12J, Viral tier)
Toggle captions on/off
Set main audio volume (0-100%)
Click CREATE EXPORT → export added to list as pending

Resize browser window to a short height (~600px or less) so the New Export form is taller than the viewport.
Open the modal: outer scrolls vertically; START EXPORT and CANCEL buttons reachable at the bottom via scroll.
At normal heights (≥800px) the modal stays visually centered (existing UX preserved).

Export Progress¶

Rendering export shows spinner + progress percentage
Progress updates in real-time (SSE)

Download & Manage¶

Completed export shows green checkmark + download button
Click download → browser download starts (MP4)
File size and duration displayed
Failed export shows red X
Delete export: trash icon → confirmation → removed
Mobile-decodable output: download a completed export and run ffprobe. The video stream should report pix_fmt=yuv420p and profile=High (NOT High 4:4:4 Predictive). Verifies VIDEO_PIX_FMT is forced through every render path so phone hardware decoders can play the file.

15. Browser Tab Context¶

No project → tab shows "Sapari"
Open project → tab shows "ProjectName - Sapari"
Analyze → tab shows "Analyzing..." (with notification prefix if unread)
Analysis complete → tab returns to "ProjectName - Sapari"
Notification arrives → tab shows "(N) ProjectName - Sapari"
Mark all read → prefix disappears

First login as trial → welcome modal appears before onboarding
Shows credit balance, tier name, pricing (AI Edit 1x, Captions 0.5x)
Mentions watermark, credit conversion on subscribe, lock-out after trial
Click "GET STARTED" → modal dismisses, onboarding starts
Refresh → modal does not reappear
Non-trial user → modal never shows

15c. Shortcut Discovery¶

Settings > Editor tab > Help section shows "Keyboard Shortcuts" button
Click → ShortcutOverlay opens
ESC or backdrop click dismisses

15d. Error Handling¶

Trigger a 422 (e.g. bad request) → generic message + support ID shown
No internal field names or stack traces visible to user
Support ID is 8 characters, different each time

16. Edge Cases & Regression¶

Empty States¶

No projects → empty state with NEW PROJECT button
No edits detected → timeline empty, can still add manual edits
No assets → asset library shows empty state
No captions (language disabled) → caption panel hidden or shows empty

Boundary Conditions¶

Very short video (<5s) → analysis and editing still work
Very long video (>30min) → no performance degradation in timeline
Same asset placed twice → both instances play independently
Maximum zoom (50x) → timeline remains usable
Popover at viewport edge → repositions to stay visible (horizontally and vertically)

Undo/Redo Integrity¶

Intro / Outro As INSERT Asset (analysis pipeline regression)¶

In Assets, set a video asset's behavior visual_mode='insert' and assign it as fixed_position='intro' for a project.
Run analysis on the project → completes without error. Regression for the analysis worker's _build_asset_edit_create: legacy audio_mode='original_only' on the AssetBehaviorConfig must map to the two INSERT-audio booleans, not be passed through to EditCreate (which rejects it for INSERT).
Verify the resulting intro Edit row has insert_audio_enabled set per the mapping (ORIGINAL_ONLY → false, ASSET_ONLY/MIX → true) and audio_mode is NULL.
Same for outro asset configured as INSERT, and for any AI-directed INSERT asset placement.

Timeline Consistency¶

Video overlay preview matches timeline position for all edit types
Edit at time 0 → renders correctly (no off-by-one)
Edit at video end → renders correctly
Resize edit to minimum → segment visible, handles accessible

Performance¶

50+ edits on timeline → no lag during scroll/zoom
Drag edit → smooth 60fps movement (no jank)
Wheel zoom → smooth transition, no flickering
Mini-map updates in real-time during pan

Desktop QA Testing Guide¶

Prerequisites¶

0. Onboarding (First-Time User)¶

Guided Tour¶

1. Authentication¶

Login¶

Email verification¶

Change Password (Account Settings)¶

Change Email (Account Settings)¶

Change Name (Account Settings)¶

Delete Account (Account Settings)¶

2. Project Management¶

Create & List¶

Edit & Delete¶

Resume¶

3. File Upload & Import¶

Upload¶

Multipart Upload (files ≥ 25 MiB)¶

Multipart Cancel + Resume¶

Clip Reorder¶

YouTube Import (Viral Plan Only)¶

3b. Failed-Clip Recovery¶

Failure Screen Appearance¶

Retry Per Failure Mode¶

Retry Button States¶

Remove Button¶

Back to Projects¶

Recovery to Normal View¶

4. Analysis Settings¶

Silence & False Starts¶

Audio & Captions¶

Presets (Configure Step — Analysis Settings)¶

Cost Estimate & Analysis Mode¶

Run Analysis¶

Re-analyze & Run Switching¶

5. Video Player (Collapsed Timeline)¶

Playback¶

Seeking¶

Timeline scrub preview (sprite tile)¶

Keyboard Shortcuts¶

Volume¶

Edit Segments on Collapsed Timeline¶

Overlap Cycling (Collapsed)¶

Cut/Keep Mode Toggle¶

5b. Keyboard Shortcuts & Playback Speed¶

JKL Shuttle Control¶

Speed Control UI¶

Shortcut Help Overlay¶

5c. Playback URL Refresh (Worker-Fronted Clips)¶

Preemptive refresh (happy path)¶

Backend-down failure (banner + retry)¶

Session-expired smoke (401 on mint)¶

Error copy differentiation¶

Retry button — iterate across errored clips¶

Dismiss + re-error cycle¶

6. Expanded Timeline Editor¶

Layout¶

Edit Selection & Popover¶

Drag & Resize¶

Undo/Redo¶

Zoom & Viewport¶

Loop & A/B¶

Overlap Cycling (Expanded)¶

7. Insert Focus Mode¶

Enter/Exit¶

Layout¶

Interactions¶

7b. In-App Notifications¶

Bell Icon¶

Notification Panel (Dropdown)¶

Notification Items¶

Real-Time (SSE)¶

Dark Mode¶

8. Asset Library¶

Asset Groups¶

Upload Assets¶

Asset Cards & Thumbnails¶

Asset Actions¶

Search & Filter¶

Asset Editor¶
